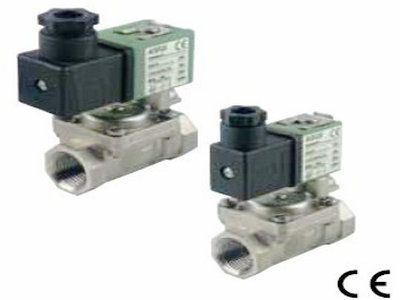

ASCO-238D系列电磁阀

FEATURES
• Minimum operating pressure differential ΔP 0,35 bar
• Two way valves for automatic control of water, air and inert gas
and other gases/liquids compatible with the sealing materials used
• Stainless steel body for wide compatibility with environments and fluids
• Interchangeability of magnetic heads, AC and DC
• The solenoid valves satisfy all relevant EC Directives
GENERAL
Differential pressure See «SPECIFICATIONS» [1 bar =100 kPa]
Ambient temperature range -10°C to +60°C
Maximum viscosity 37 cSt (mm2/s)
Response time 3/8 1/2 3/4 1
opening time (ms) 300 300 300 1500
closing time (ms) 1000 1000 1000 2000

选型及产品详情请参阅样本并致电咨询！
